Suggestions on getting your new InterFlip DRAGON pinball game working.
1) Replace the original power cord with an 18 gauge 3 conductor cord - you can use a computer power cord after cutting off the socket end. On the original white power cord the BLUE wire is replaced with WHITE, the BROWN wire is replaced with BLACK and the GREEN/YELLOW wire is replaced with the GREEN wires from the new North American style power cord.

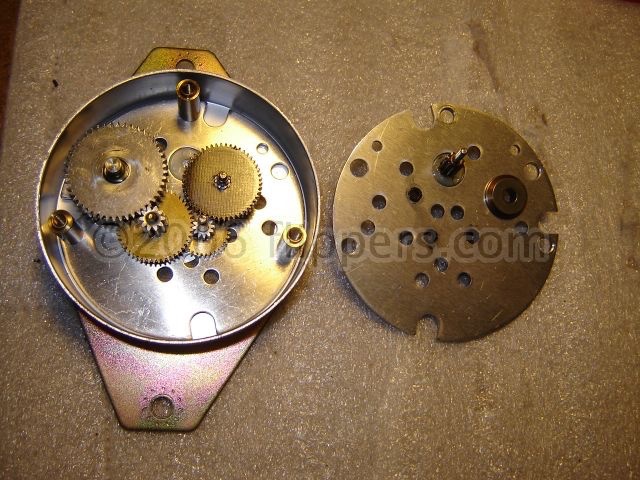

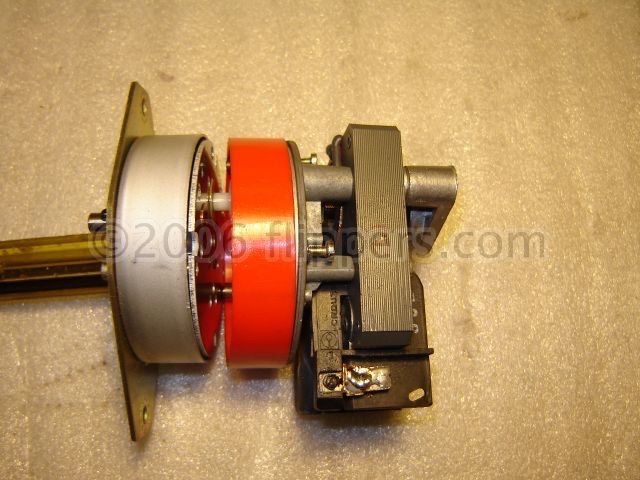

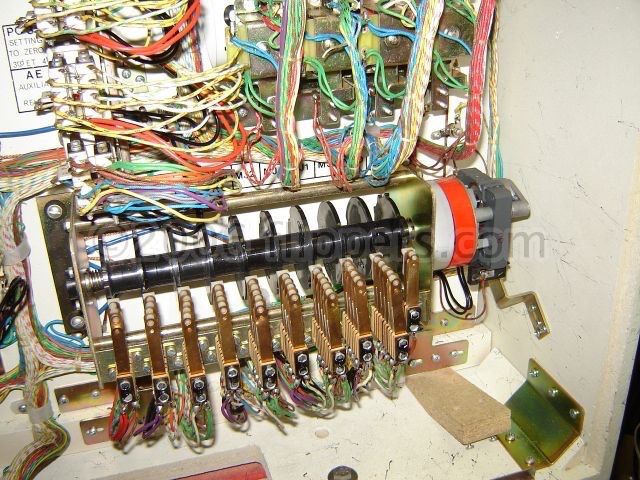

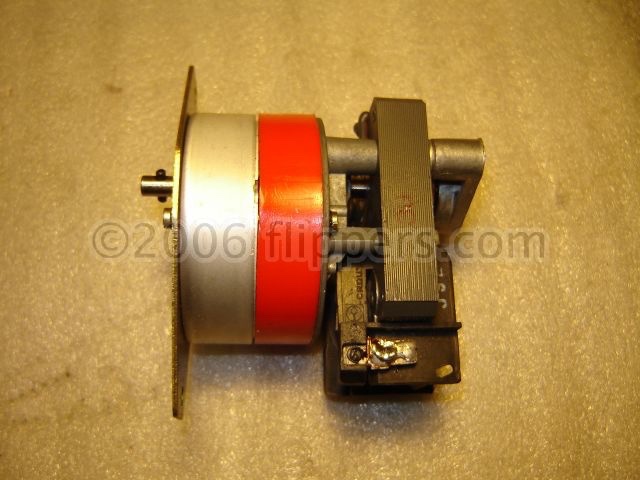

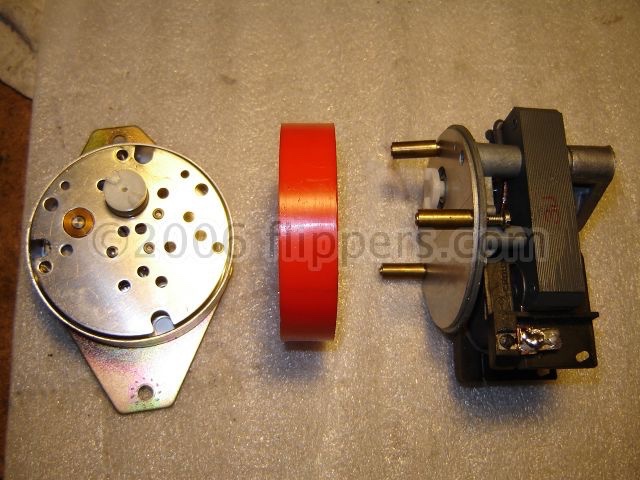

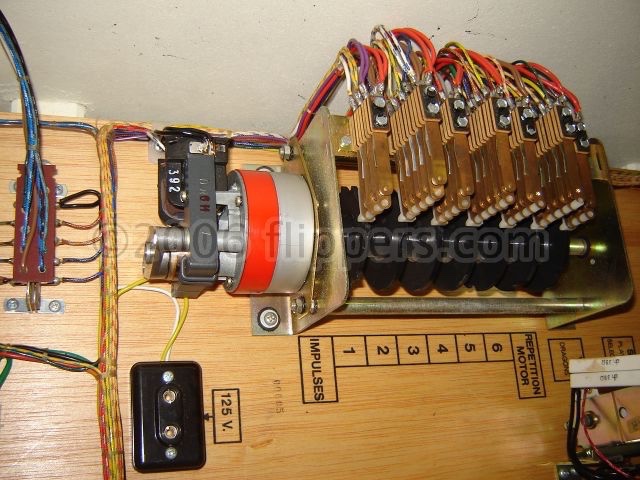

2) Rebuild the two drive motors. One that is mounted on the inside bottom (lift playfield) of the main body, the second is found in the headboard.
3) Move the jumper from 125VAC to 110VAC on the transformer
4) If the game tilts when both flippers are flapped at the same time then you need to do a minor bit of rewiring.
1st.

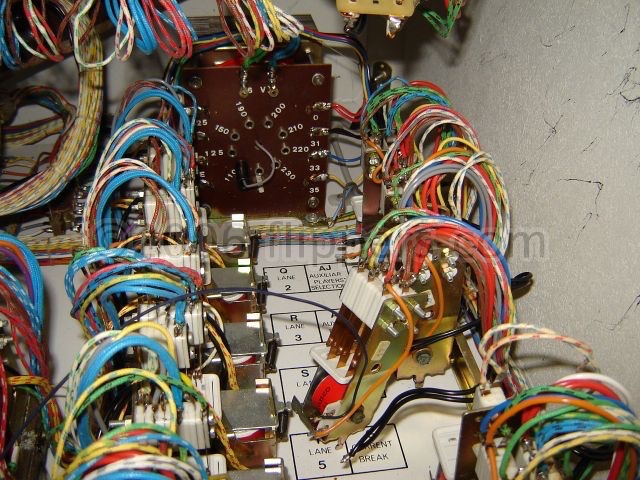

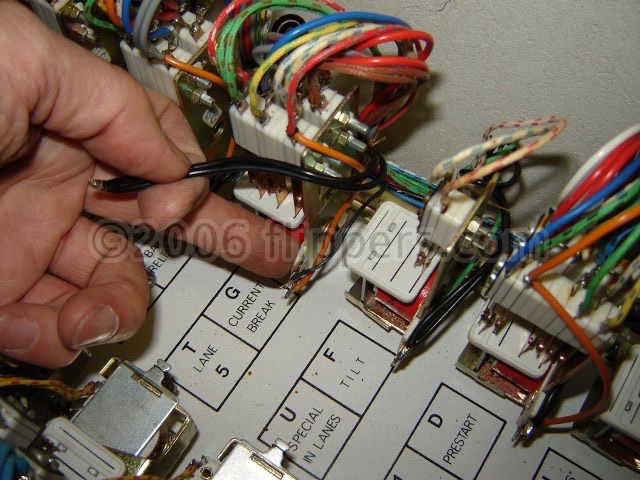

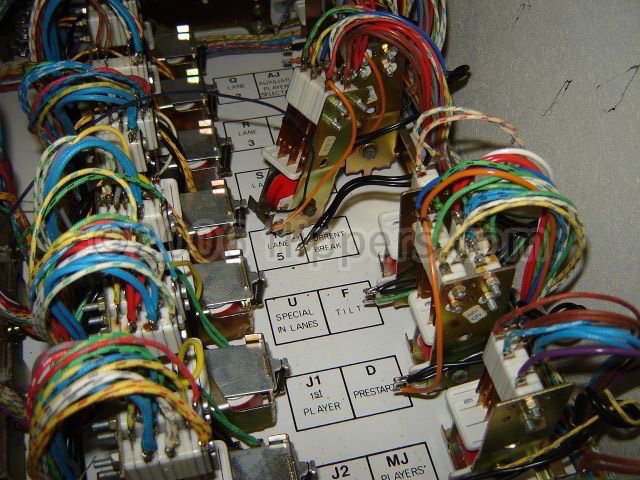

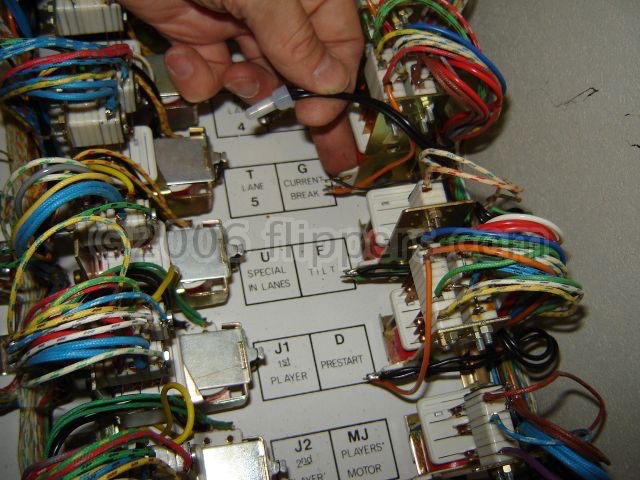

Starting with the "G" relay unsolder the black pair of wires from one terminal - leave them soldered together and insulate carefully and tuck out of the way.

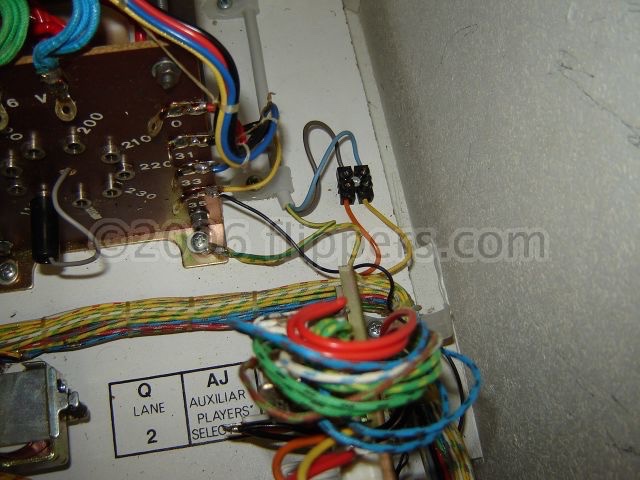

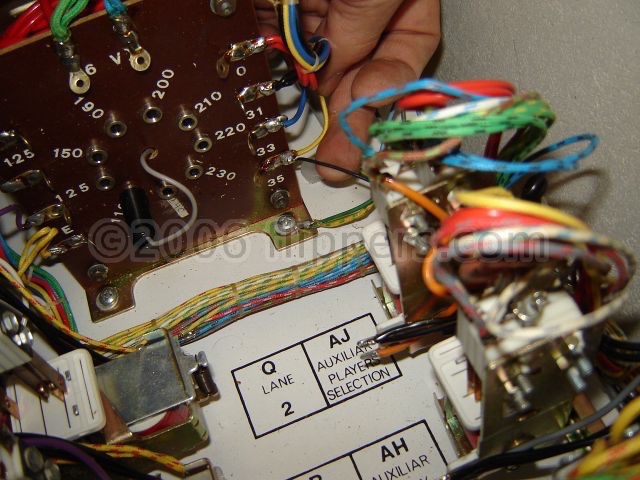

2nd. Run a jumper wire (18 - 22 gauge) from the "35VAC" tap on the main transformer to the lug on the "G" relay that you removed the black wire from. Done!
