Rubber Ring Database

Thanks to Lou Perazzoli for making this database!
Please send additions, corrections and comments to: jrr at flippers dot com


Games in Alphabetical Order:

A
Air Aces (with diagram)

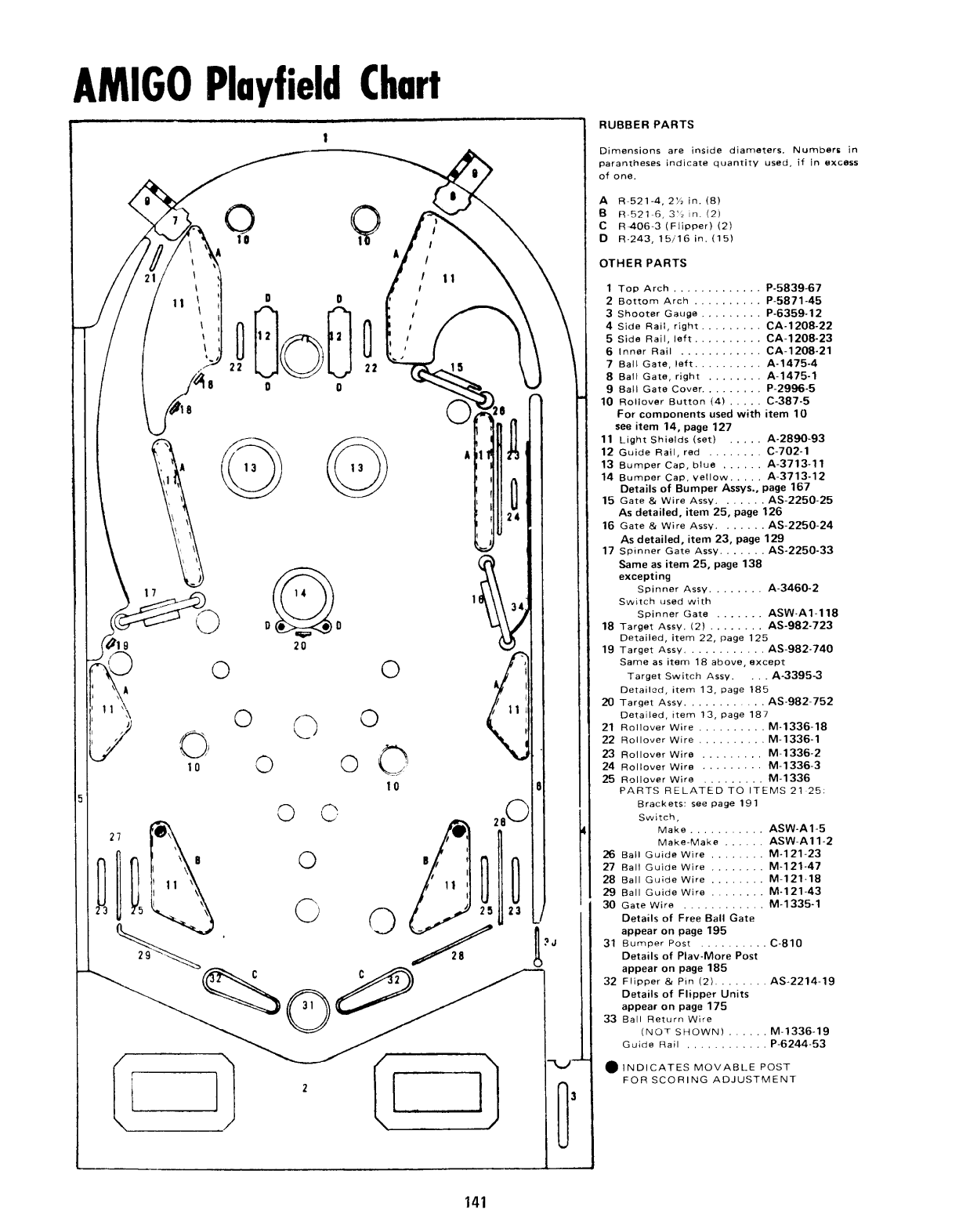

Amigo (diagram)
Attack From Mars
B
Big Show (diagram)

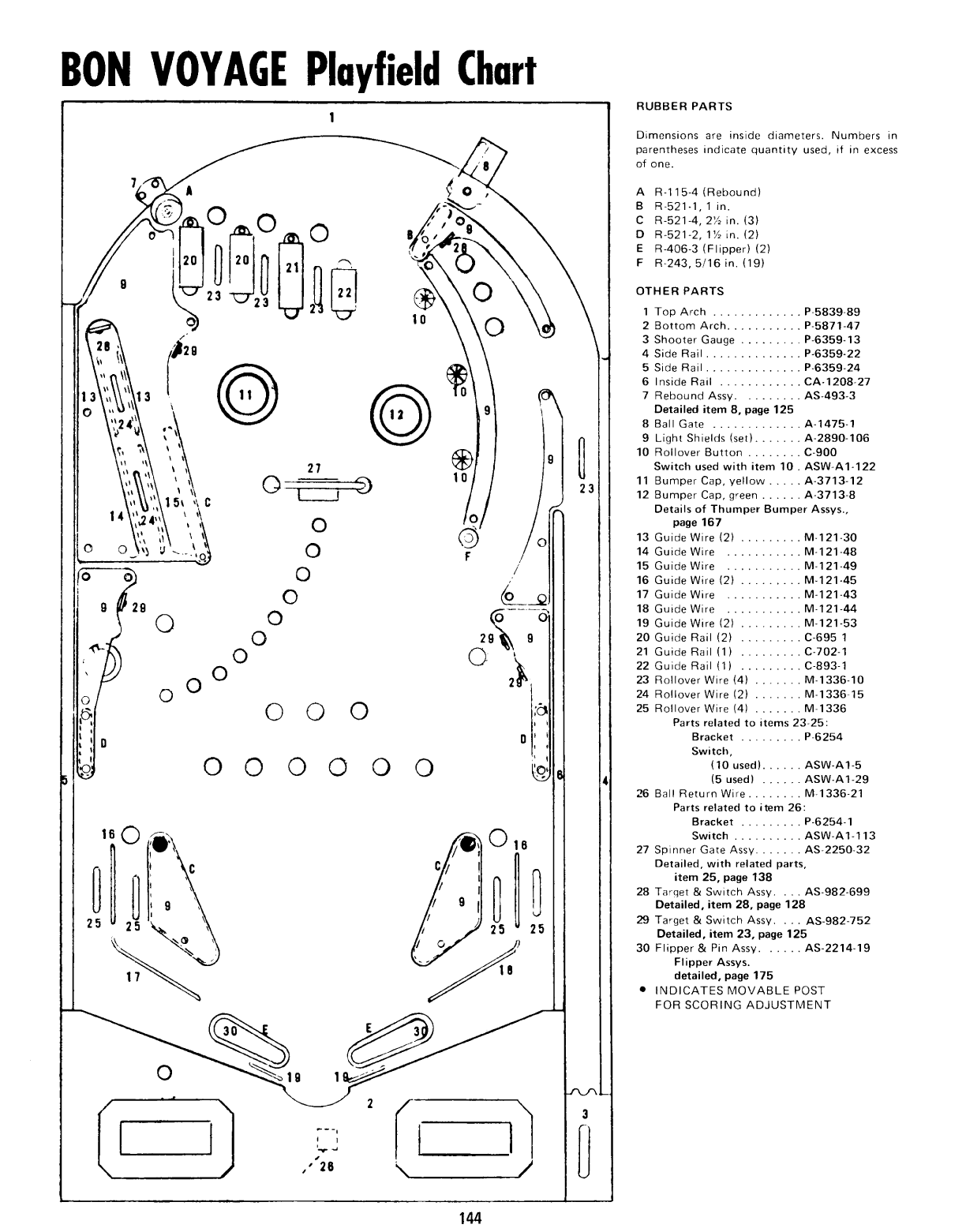

Bon Voyage (diagram)
Boomerang (diagram)

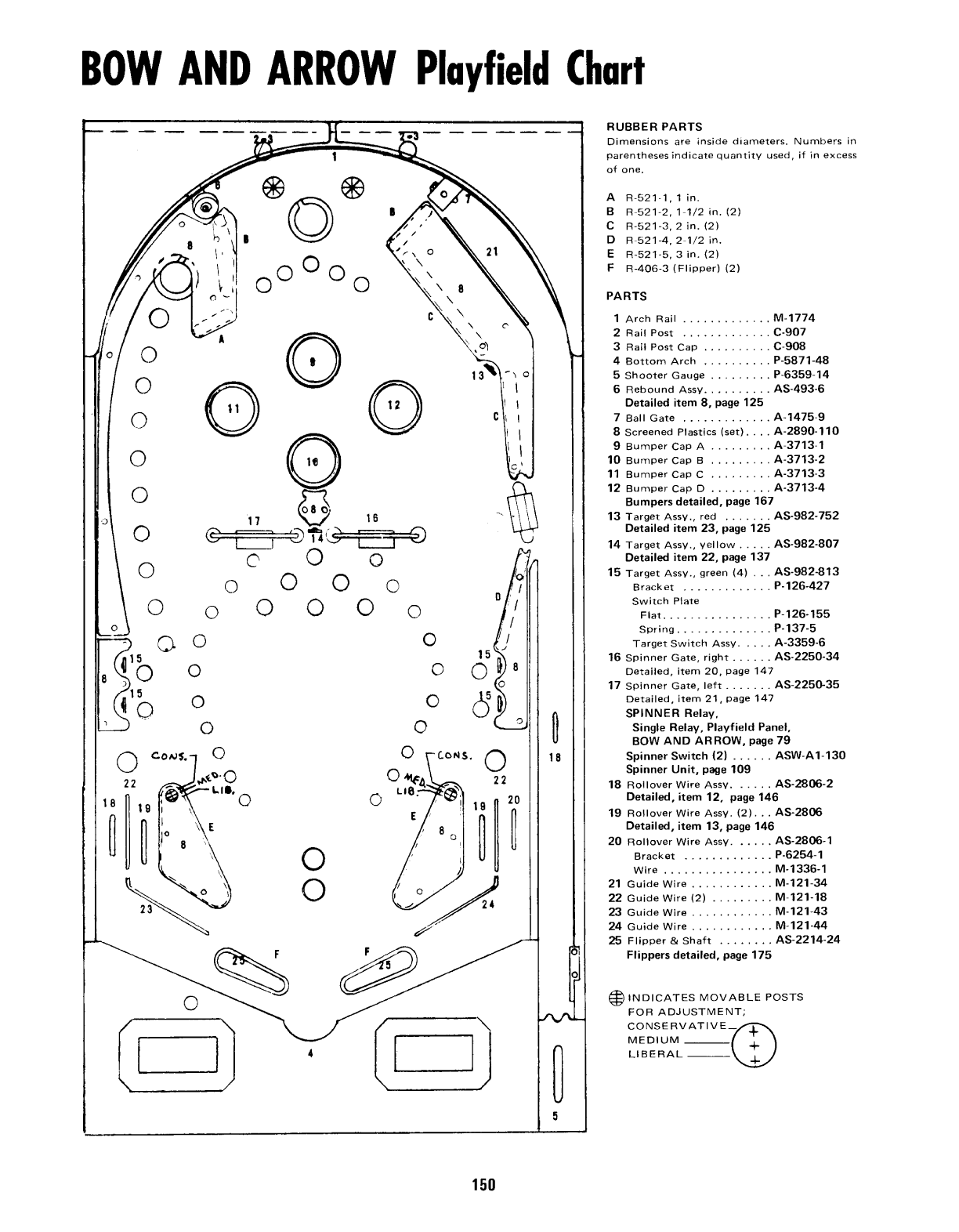

Bow And Arrow (diagram)
Bride of Pinbot
C
Cactus Canyon (with diagram) (Copied from Steve Trischetta's webpage)
Capt. Fantastic (with diagram)
Champ (diagram)
Circus (Bally) (diagram)
Cirqus Voltaire
Congo (diagram)
Corvette
Creature From The Black Lagon (with diagram)
Cyclone
D

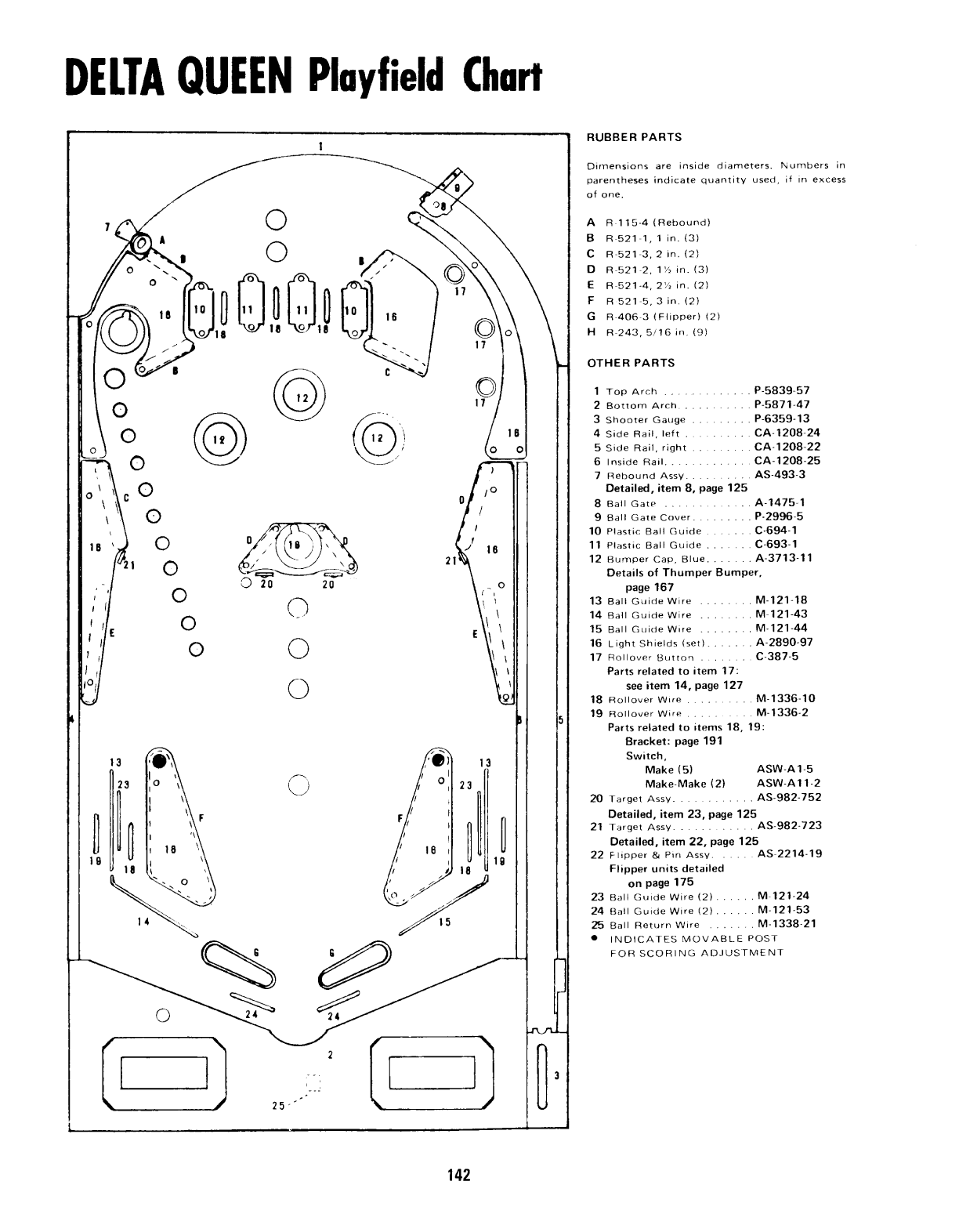

Delta Queen (diagram)
Demolition Man
Devil Riders, Zaccaria
Diner
Dirty Harry
Doctor Who (with diagram)
Bram Stoker's Dracula (with diagram)
E
Earth Shaker
Eight Ball Champ
Eight Ball Deluxe (with diagram)

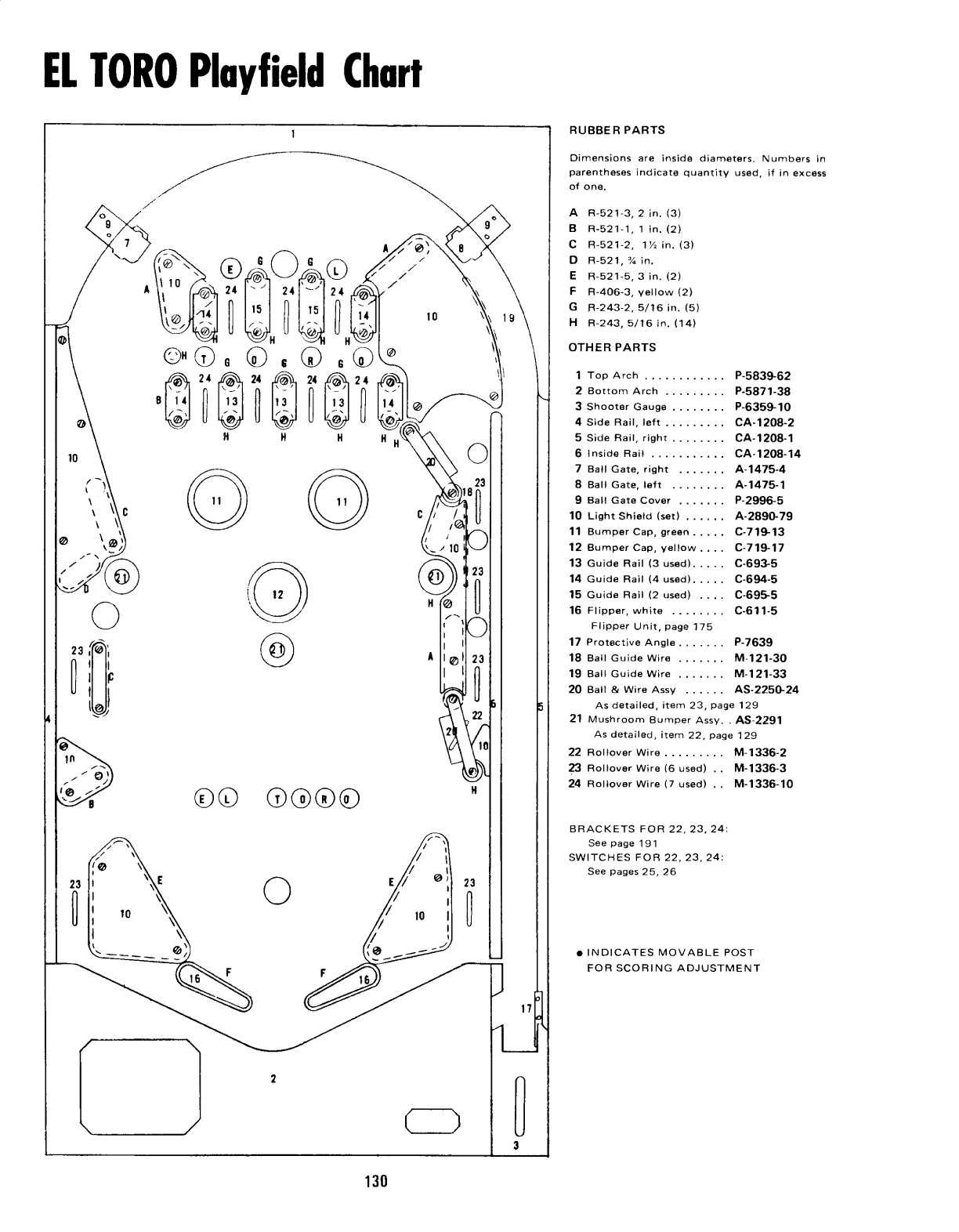

El Toro (diagram)
Elvira and the Party Monsters

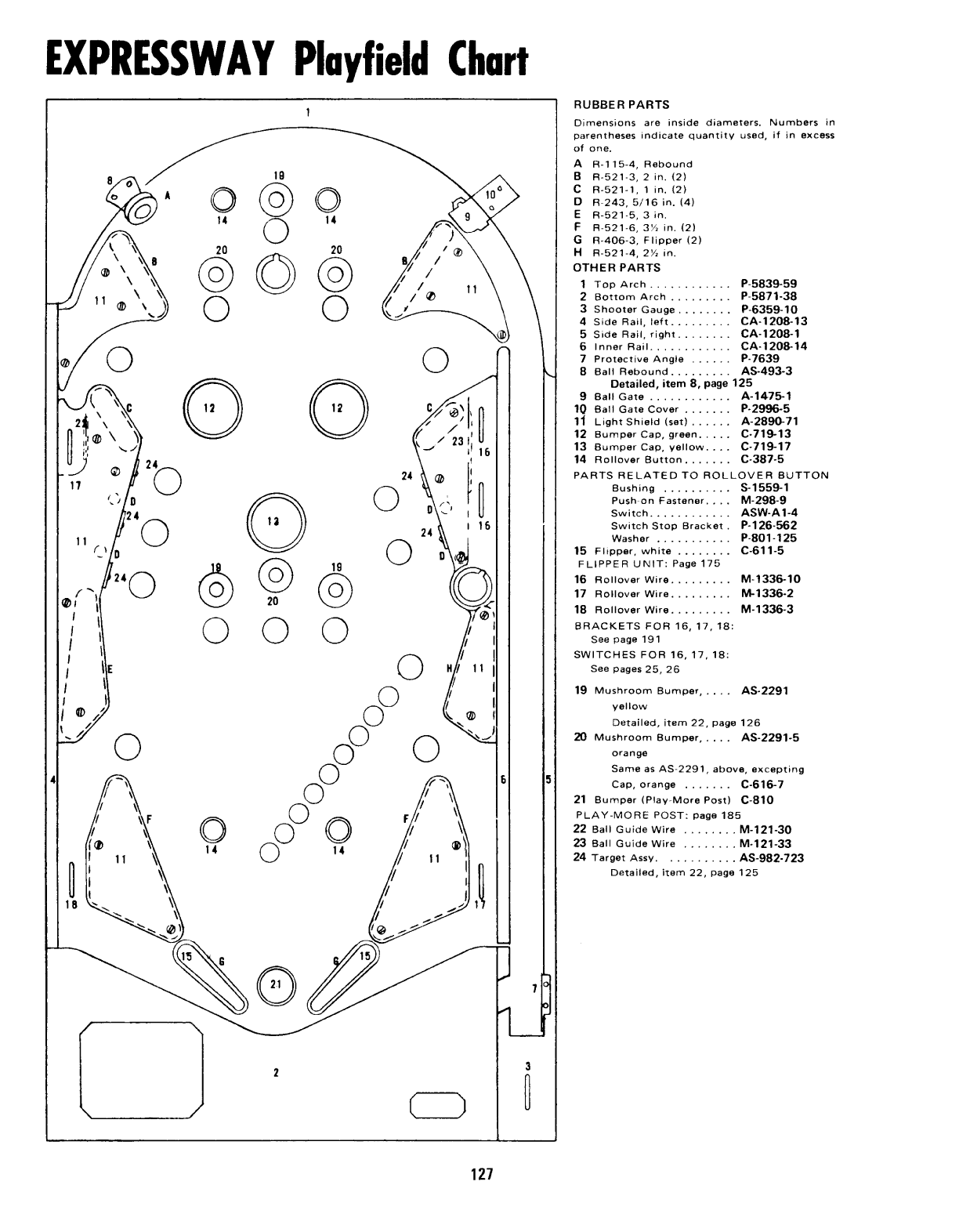

Expressway (diagram)
F
Fireball (with diagram)
FishTales
Flicker (diagram)

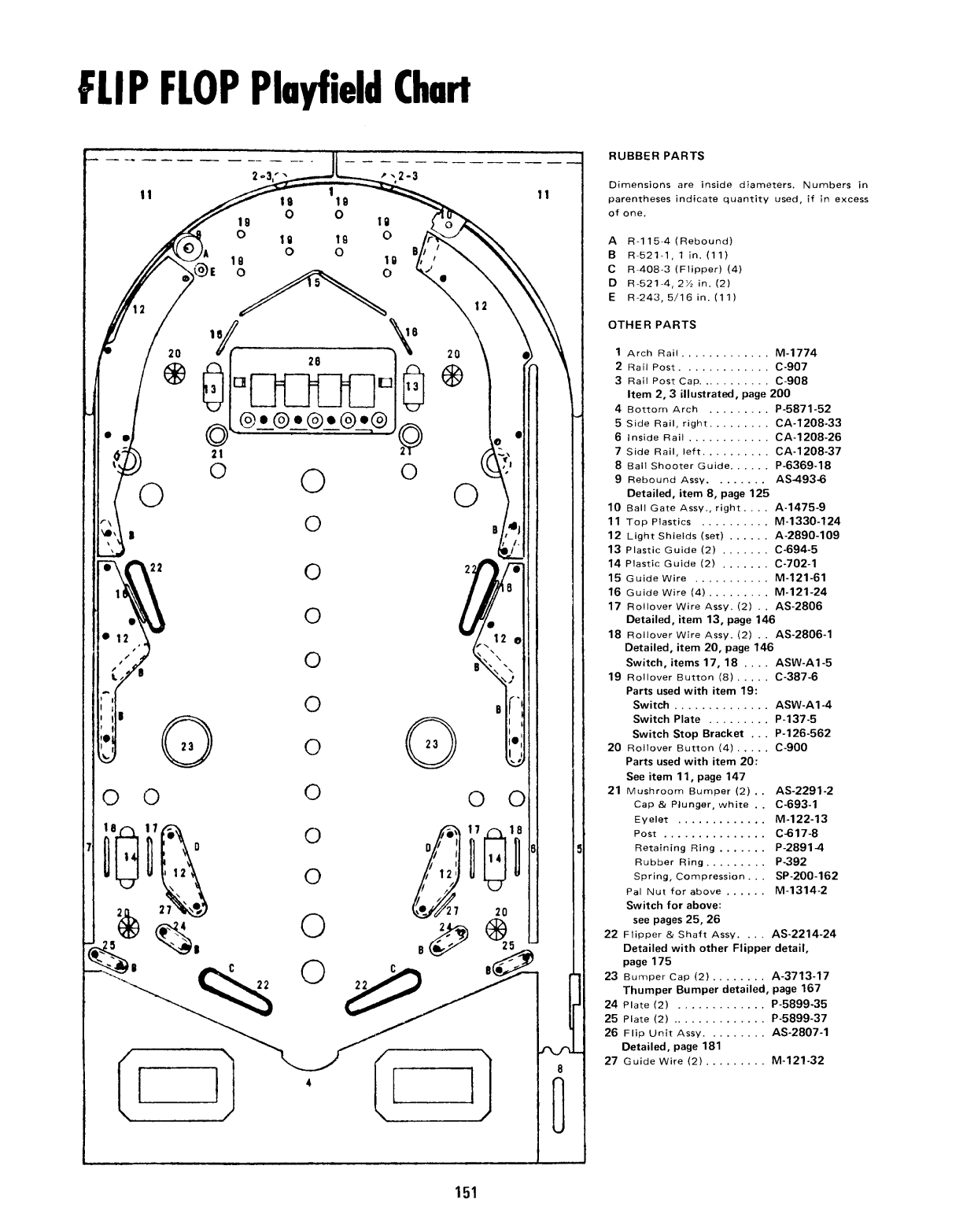

Flip Flop (diagram)
4 Million BC (diagram)
FunHouse (with diagram)
H
Haunted House
Hi Deal (diagram)
High Hand

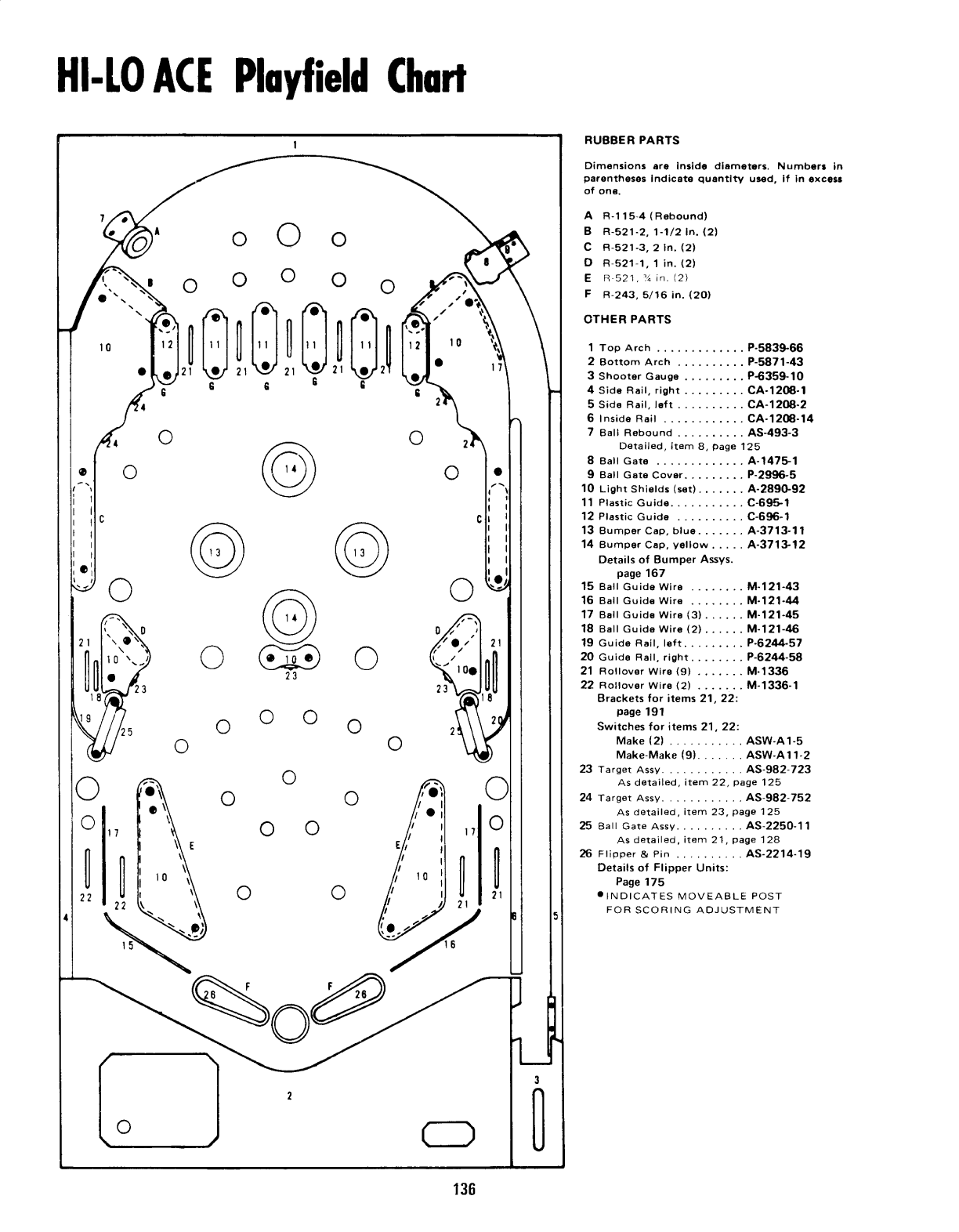

Hi-Lo Ace (diagram)

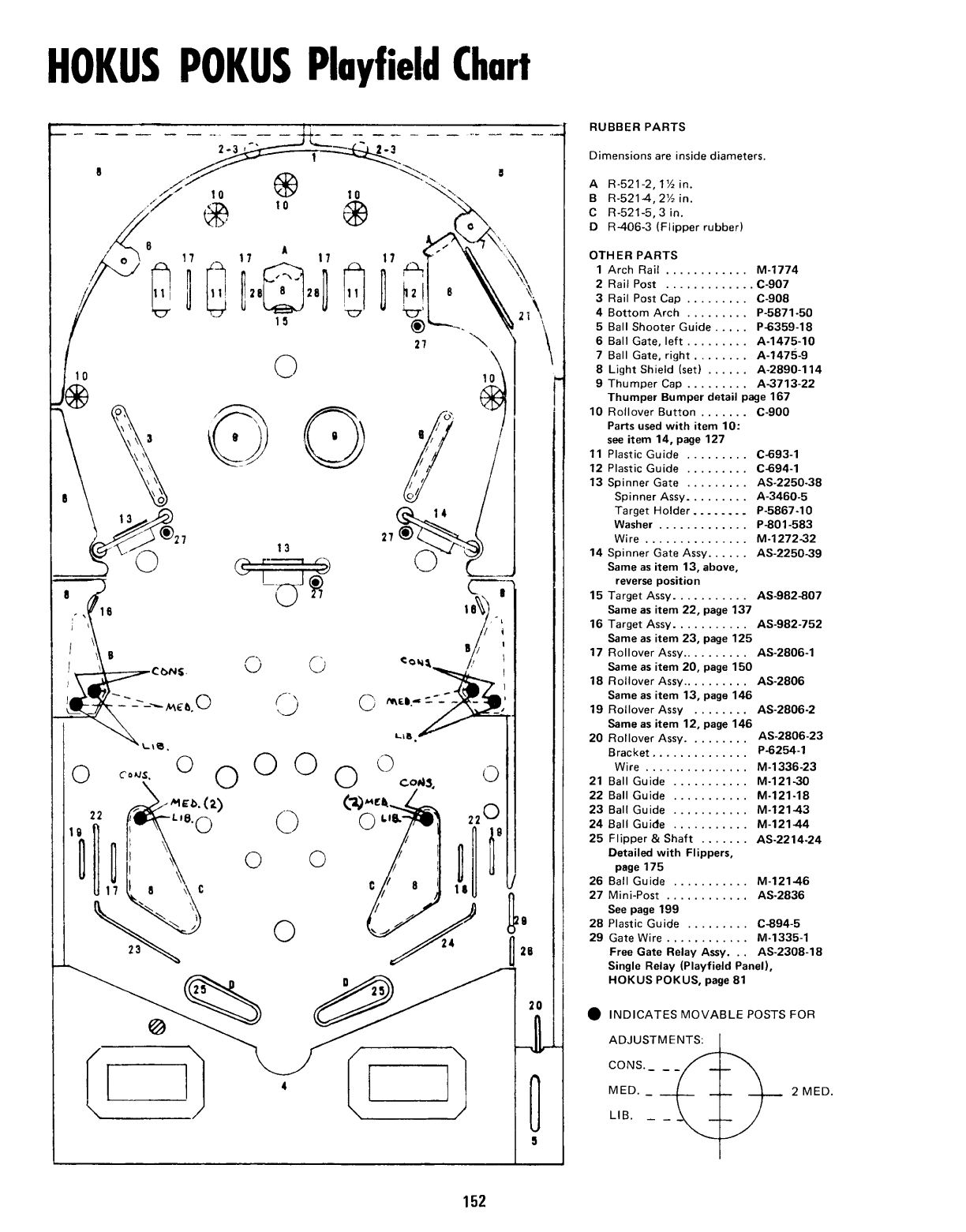

Hokus Pokus (diagram)
K
Kiss (with diagram)

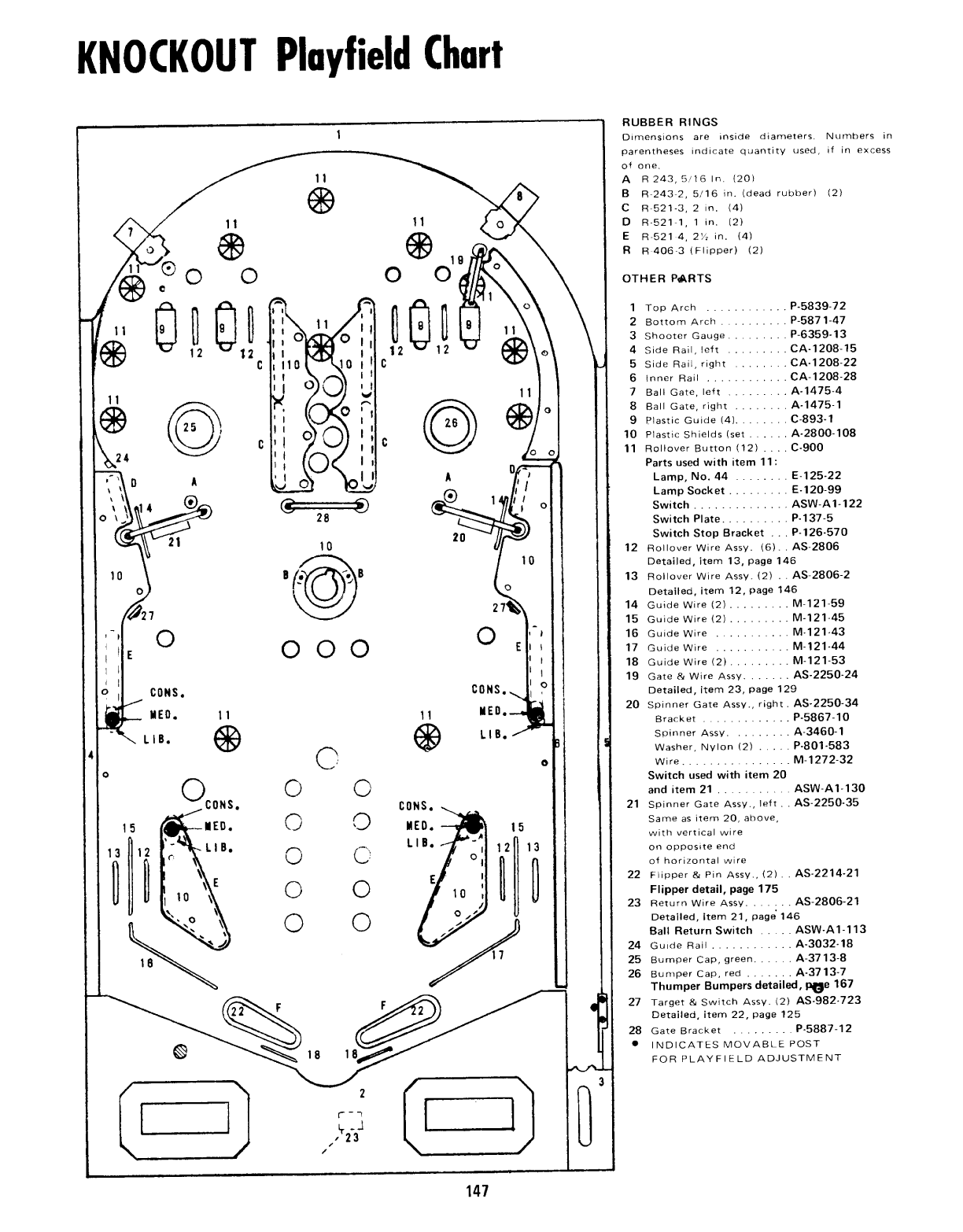

Knockout (diagram)
I
Incredible Hulk
Indiana Jones (with diagram)
J
Joker Poker
Jokerz!
Joust
L
Little Joe (diagram)
M
Medieval Madness (with diagram)
Monopoly (with diagram)
Monster Bash (with diagram)
Mystery Castle

N
No Good Gofers (with diagram)
Nip It (with diagram)
O

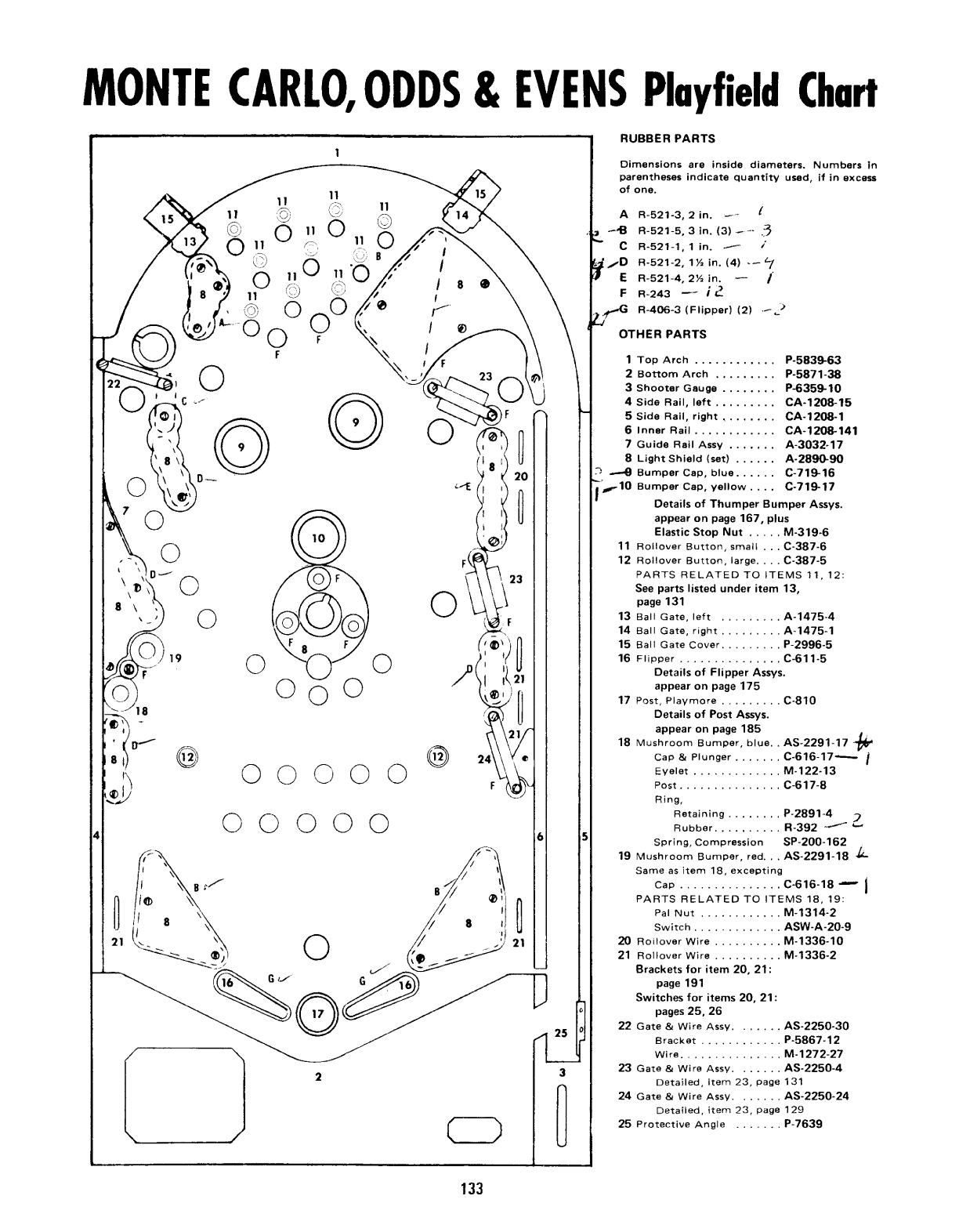

Odds Evens (diagram)

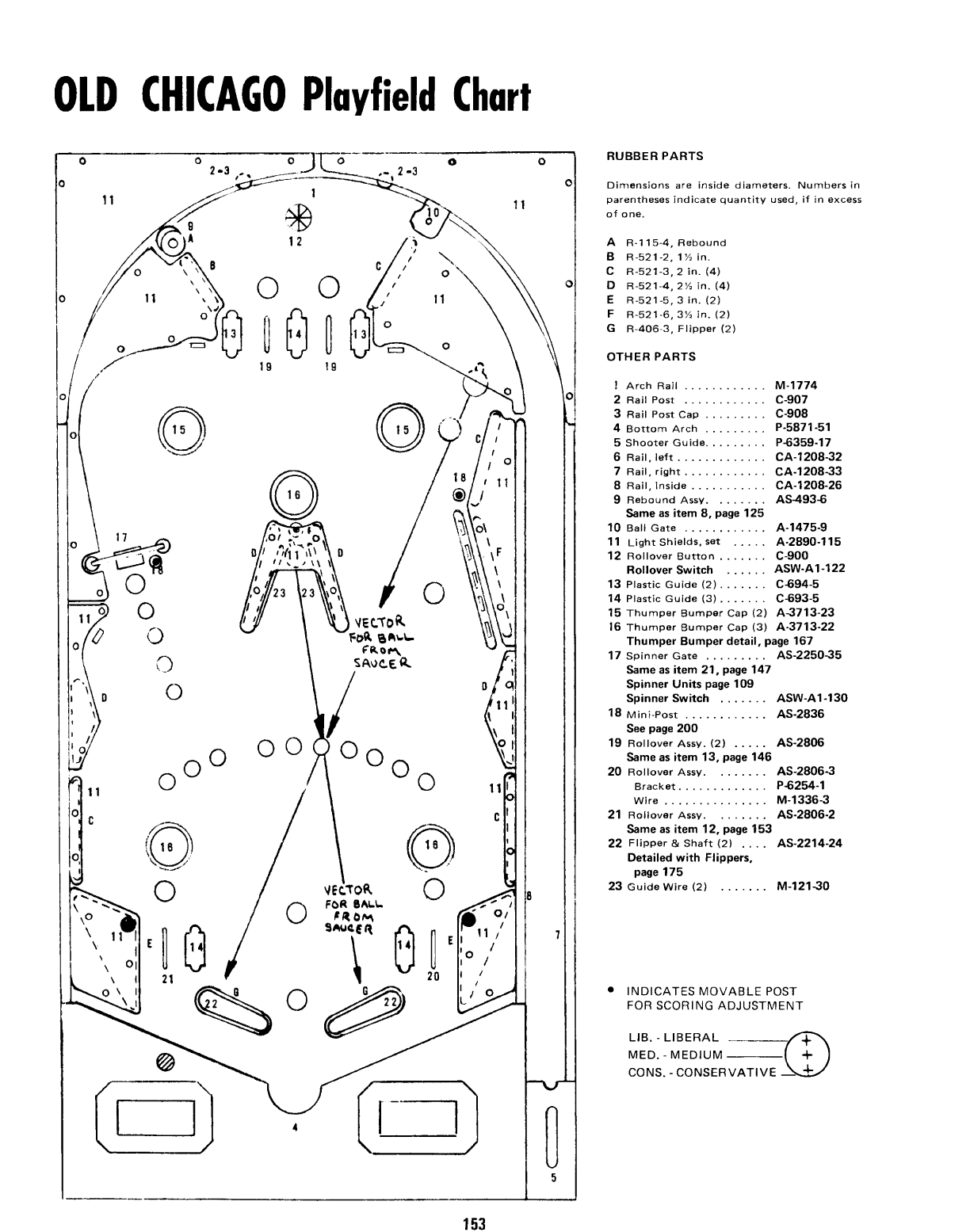

Old Chicago (diagram)
P
PinBot
Playboy (Bally)
Power Play
R
River Boat Gambler
Road Show

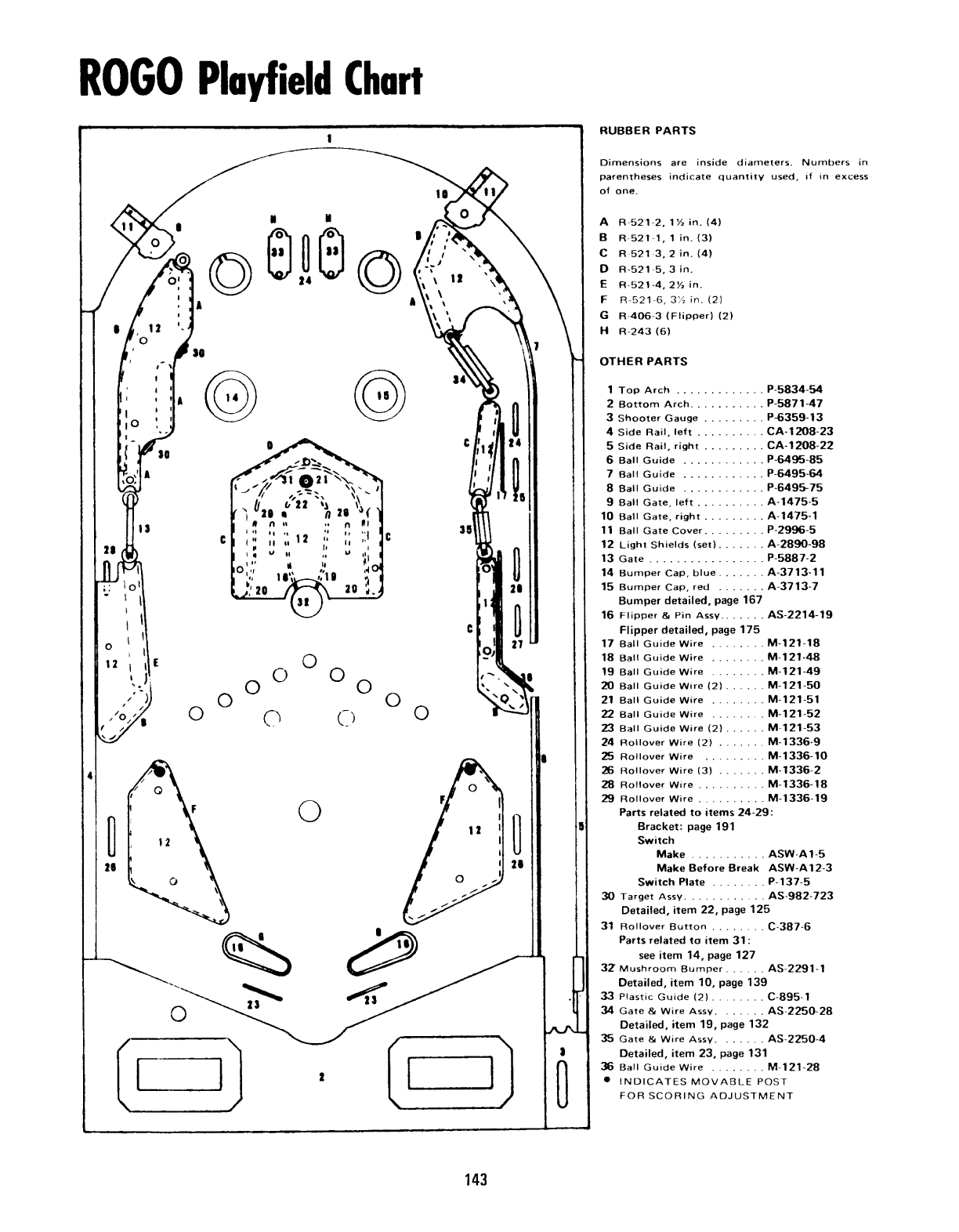

RoGo (diagram)
S
Safe Cracker (with diagram)

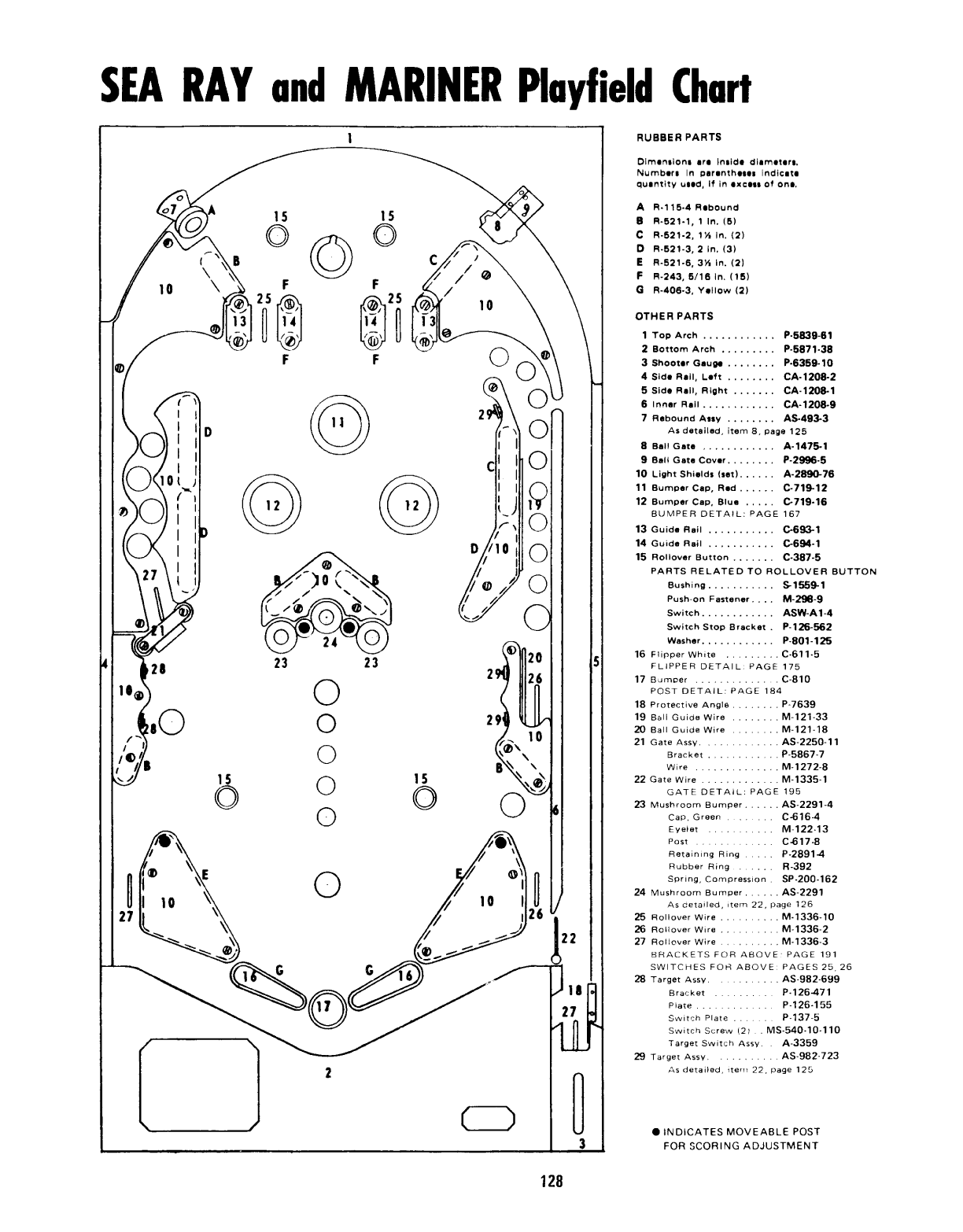

Sea Ray (diagram)

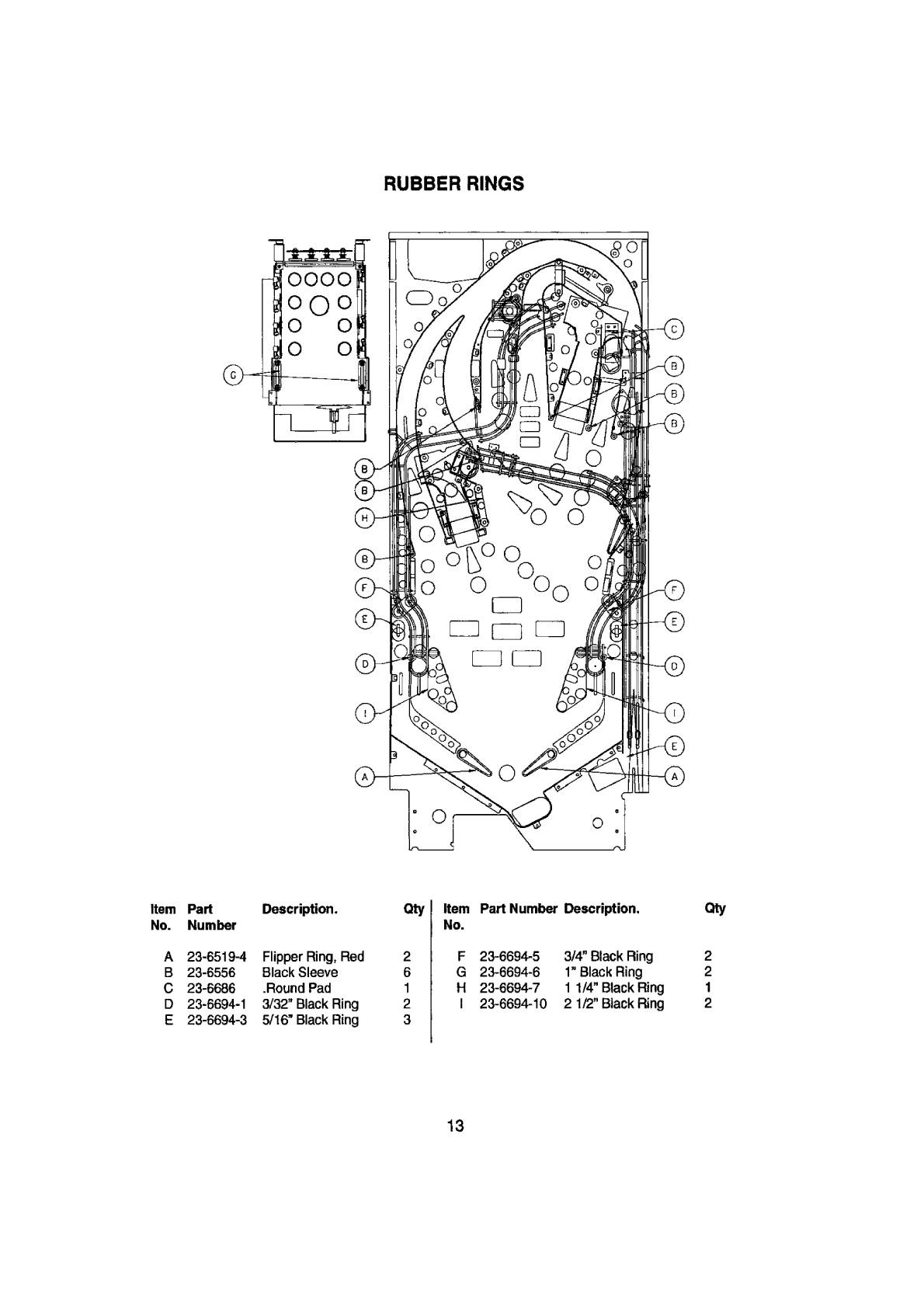

The Shadow (diagram)

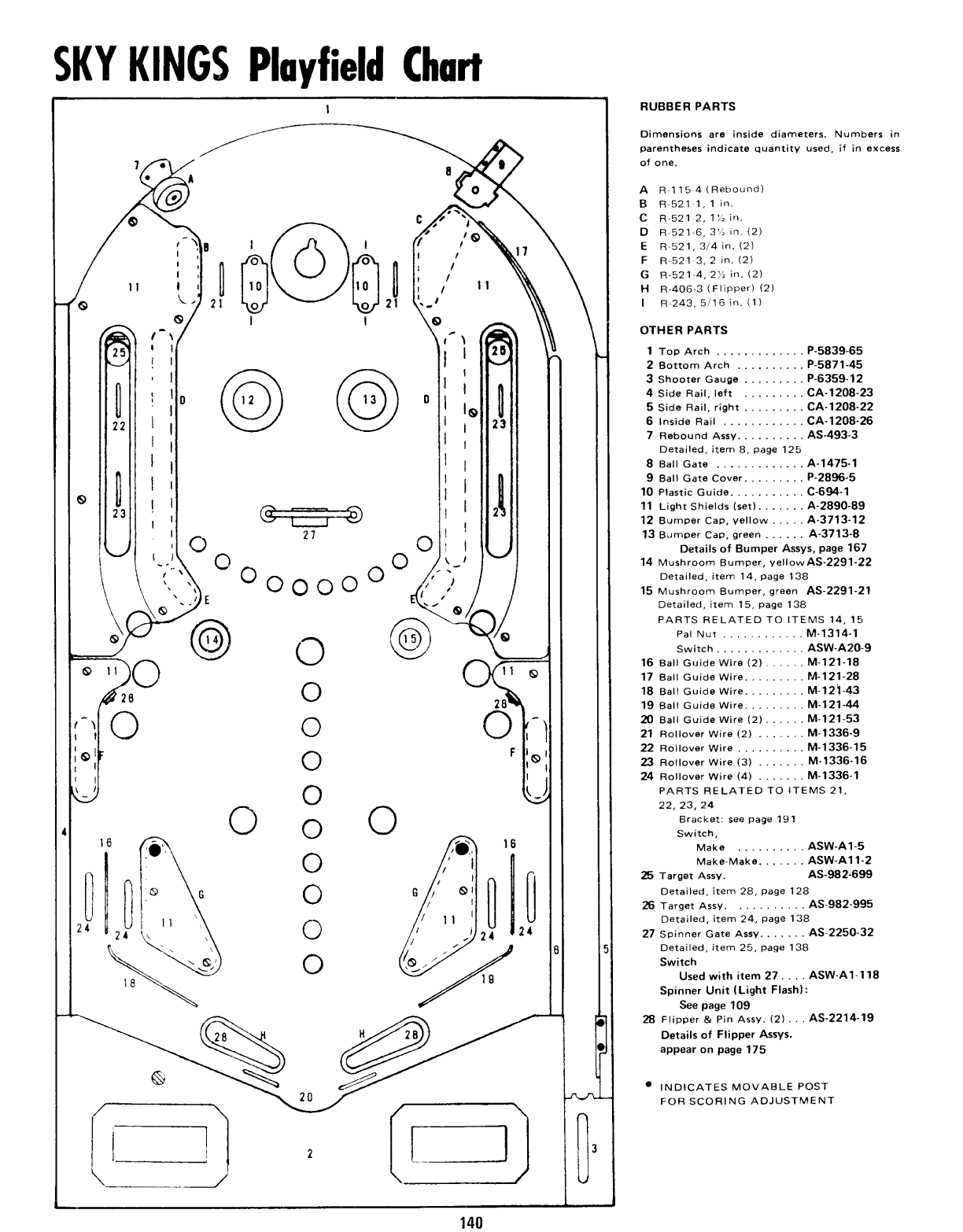

Sky Kings (diagram)
Sky Rocket (diagram)

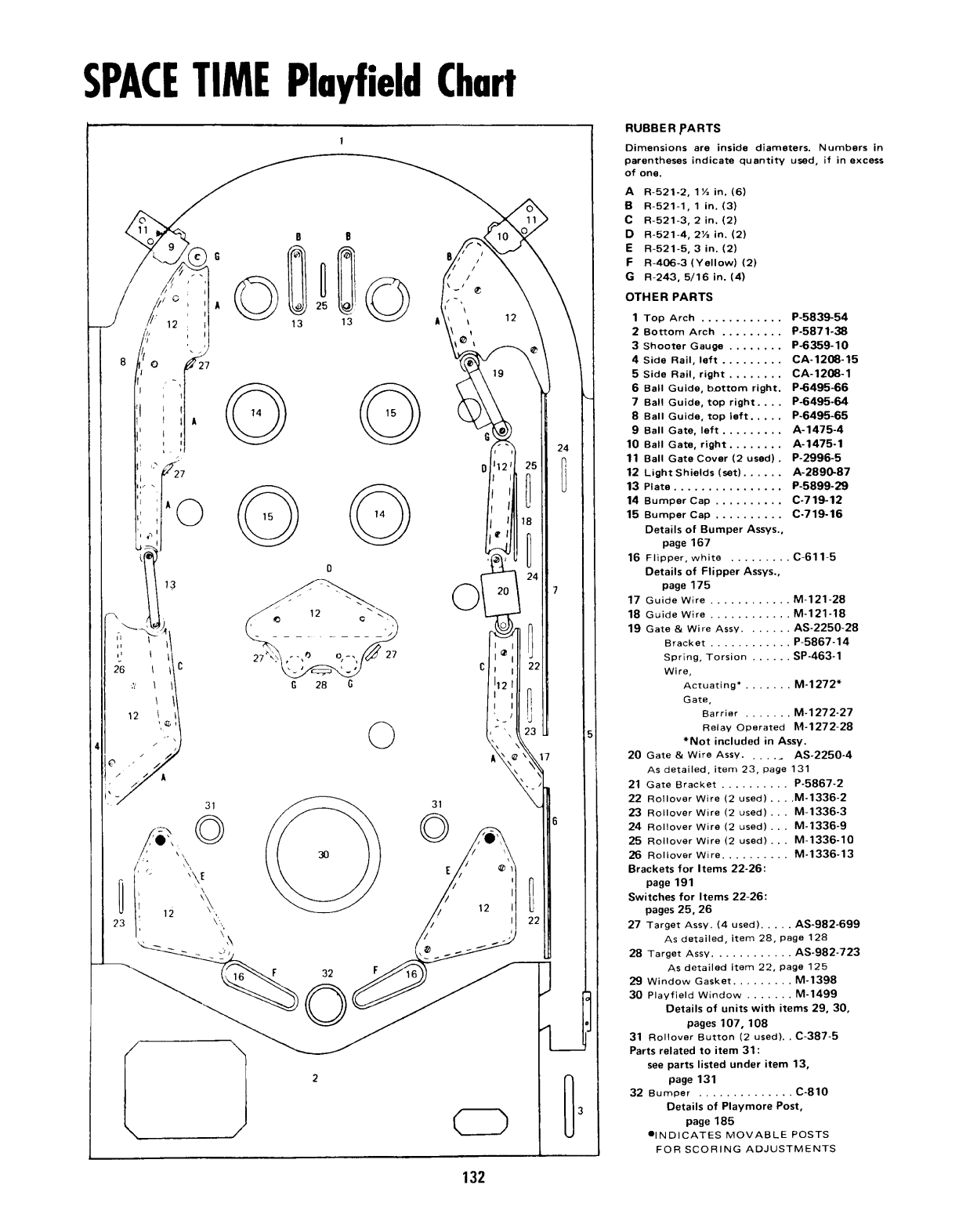

Space Time (diagram)
Swords of Fury
Scared Stiff (with diagram)
Star Trek: The Next Generation (with diagram)
T
Tales of The Arabian Nights (with diagram)
Taxi
Teenage Mutant Ninga Turtles
Terminator 2 (with diagram)
The Addams Family (with diagram)
The Getaway
Theatre of Magic

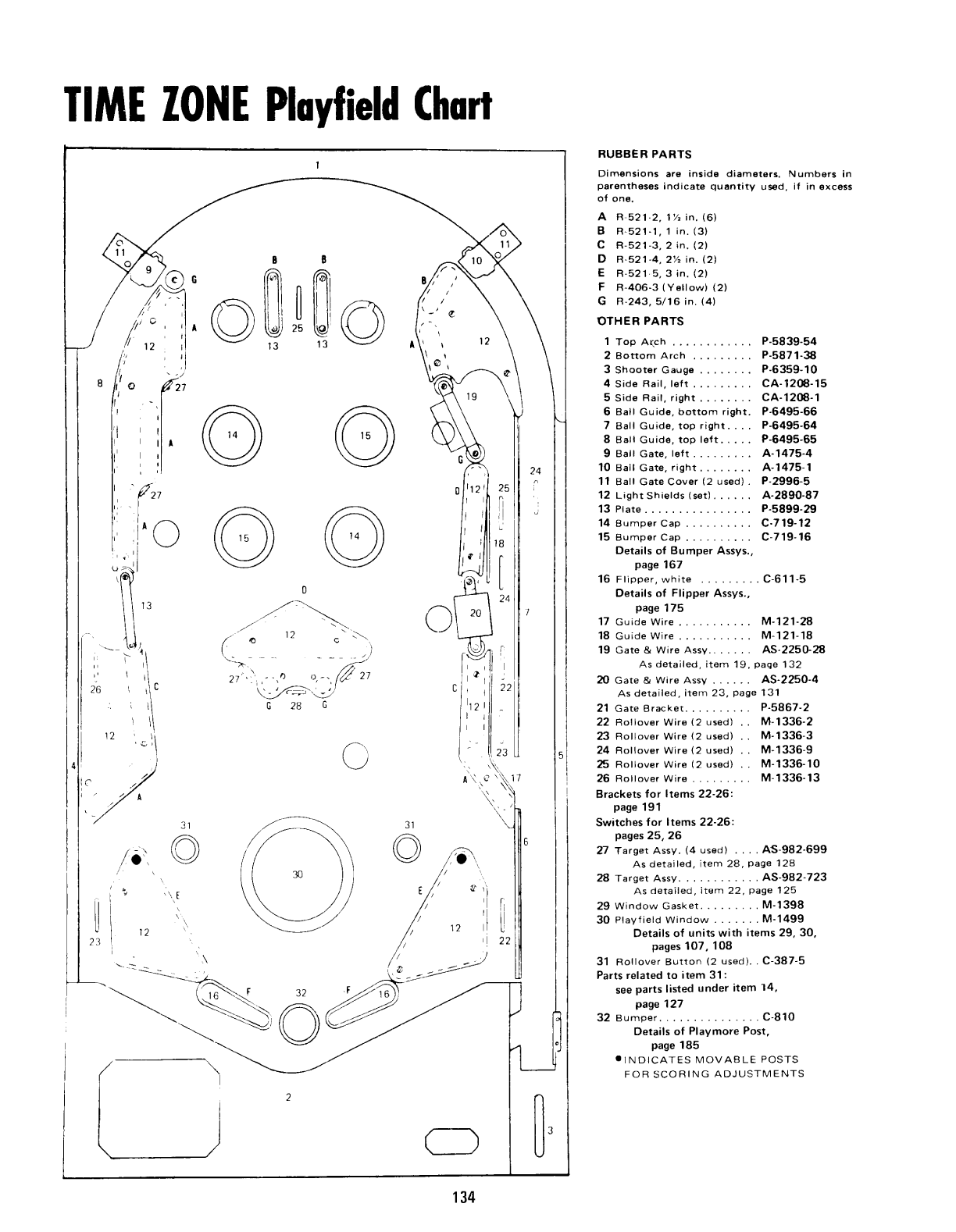

Time Zone (diagram)
Twilight Zone (with diagram)

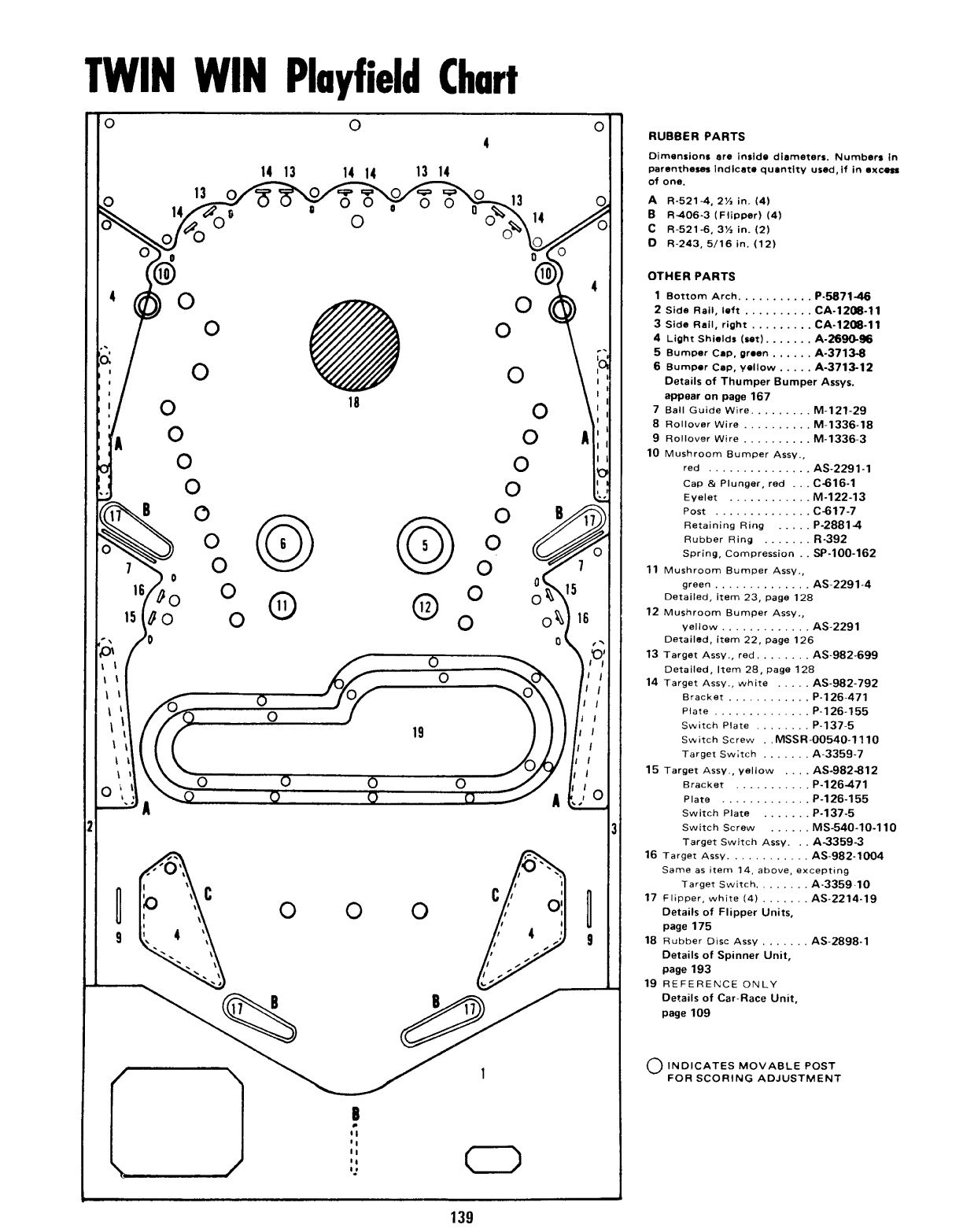

Twin Win (diagram)
W
White Water (with diagram)
Wizard (Bally) (with diagram)
Whirlwind
World Cup Soccer
X
Xenon
Z

Web Page for Zaccaria Machines

Action Pinball & Amusement's cross reference guide

www.Flippers.com - John's Jukes Ltd. rubber ring size chart.

Mr. Pinball's Repair tip on sizing rubbers based on post distances

Williams part numbers for correponding rings.

  Part Number
  Rings - Inside Diameter   WhiteBlack
3/16 23-6641
1/4 ?
5/16 23-6300 23-6694-3
3/8 ?
7/16 23-6599 23-6694-4
5/8 ? ?
1/2 ? ?
3/4 23-6301 23-6694-5
1 23-6302 23-6694-6
1-1/4 23-6303 23-6694-7
1-1/2 23-6304 23-6694-8
2 23-6305 23-6694-9
2-1/2 23-6306 23-6694-10
2-3/4 ?
3 23-6307 23-6694-11
3-1/2 23-6308 23-6694-12
4 23-6309 23-6694-13
4-1/2 ? ?
5 23-6310 23-6694-14
6 23-6429 ?
Rebound ? ?
Plunger tip 23-6327
Minipost-std 27/64 23-6535
Minipost-sm 23/64 ?
Flipper std 1-1/2 x 1/2 red 23-6519-4
Flipper std 1-1/2 x 1/2 black 23-6695
Small Flipper - red 23-6553-4
Post Cap ?
3/4 Tapered Sleeve yellow 23-6579
WMS Bumper ?
Sleeve - Yellow 23-6552
Rubber Sleeve - black 23-6556
Ring Bumper - 27/64 23-6535
Round Bumper Pad ?
Rubber pad (blue) 23-6629
Rubber pad (blue) 23-6674
Rubber Bumper plug 23-6677
Rubber protector 3/8 23-6534
Black Bumber Cover 23-6641
White Rubber Ring 23-6641-1
Black rubber gromlet 3/32 23-6694-1
Bumper plug 23-6686
3/4 tapered bumper 23-6632
